Intuition-pv

Solar PV Monitoring

Product Features:

  • Allows monitoring of the PV generation, export and overall consumption of a property with solar panels.

  • Intuition online dashboard gives you access wherever you go, as long as you have internet access. Android and i-Phone apps can give you access on-the-go.

  • Shows live readings to 12 second intervals, and a historical account of the above; also telling you when you've improved your usage habits or your solar panels are performing better.

  • User configurable tariff settings allow the unit to calculate what you've spent over the course of a day, week, and month. FITS settings allow you to see the tangible impact your solar panels are having on your bills.
Intuition -PV

  • Provides graphs showing both historical and peak values, allowing you to identify when your solar panels have been generating the most energy - and therefore the best times to use power in a day.

OWL Intuition-pv Dashboard Screenshots

Click for larger images.

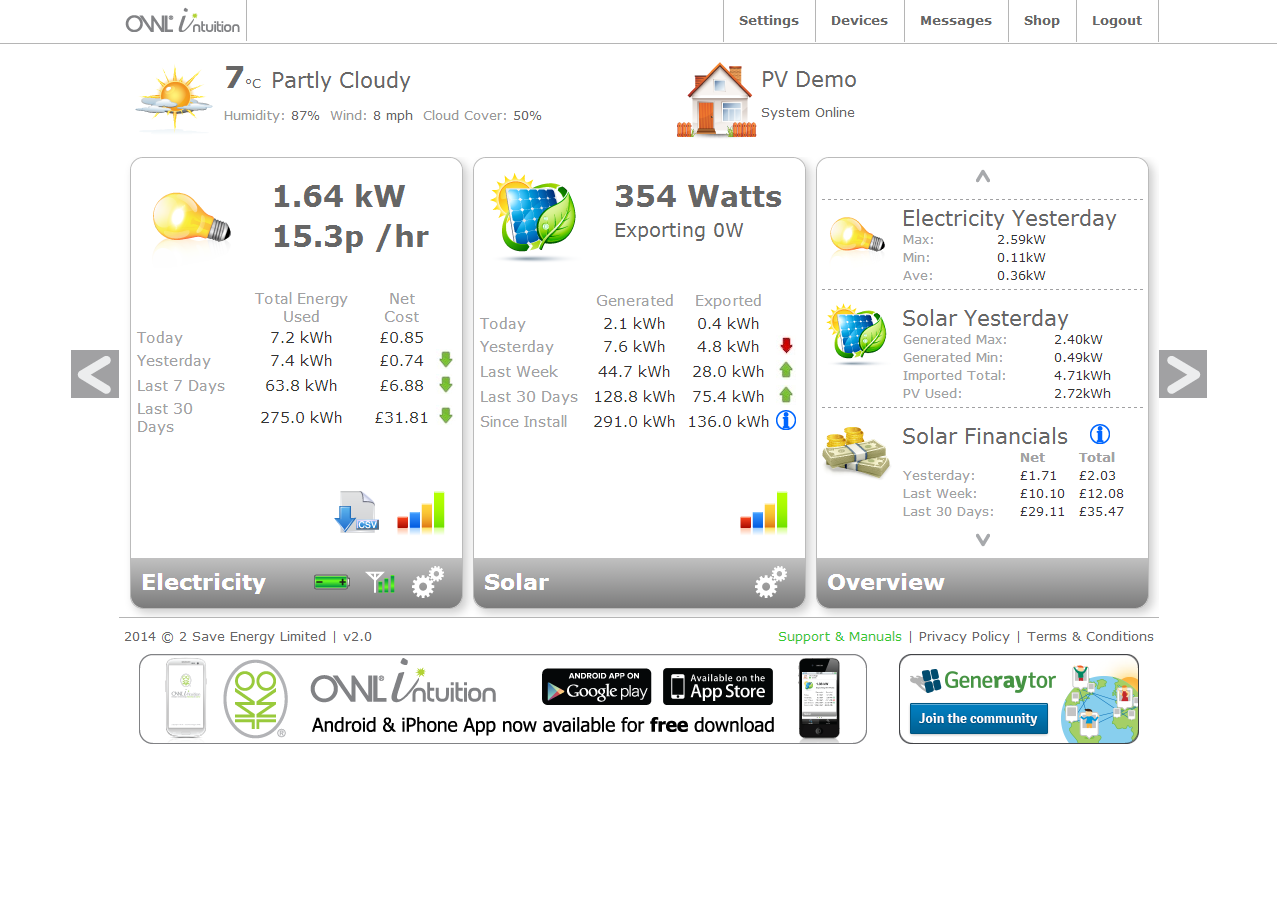

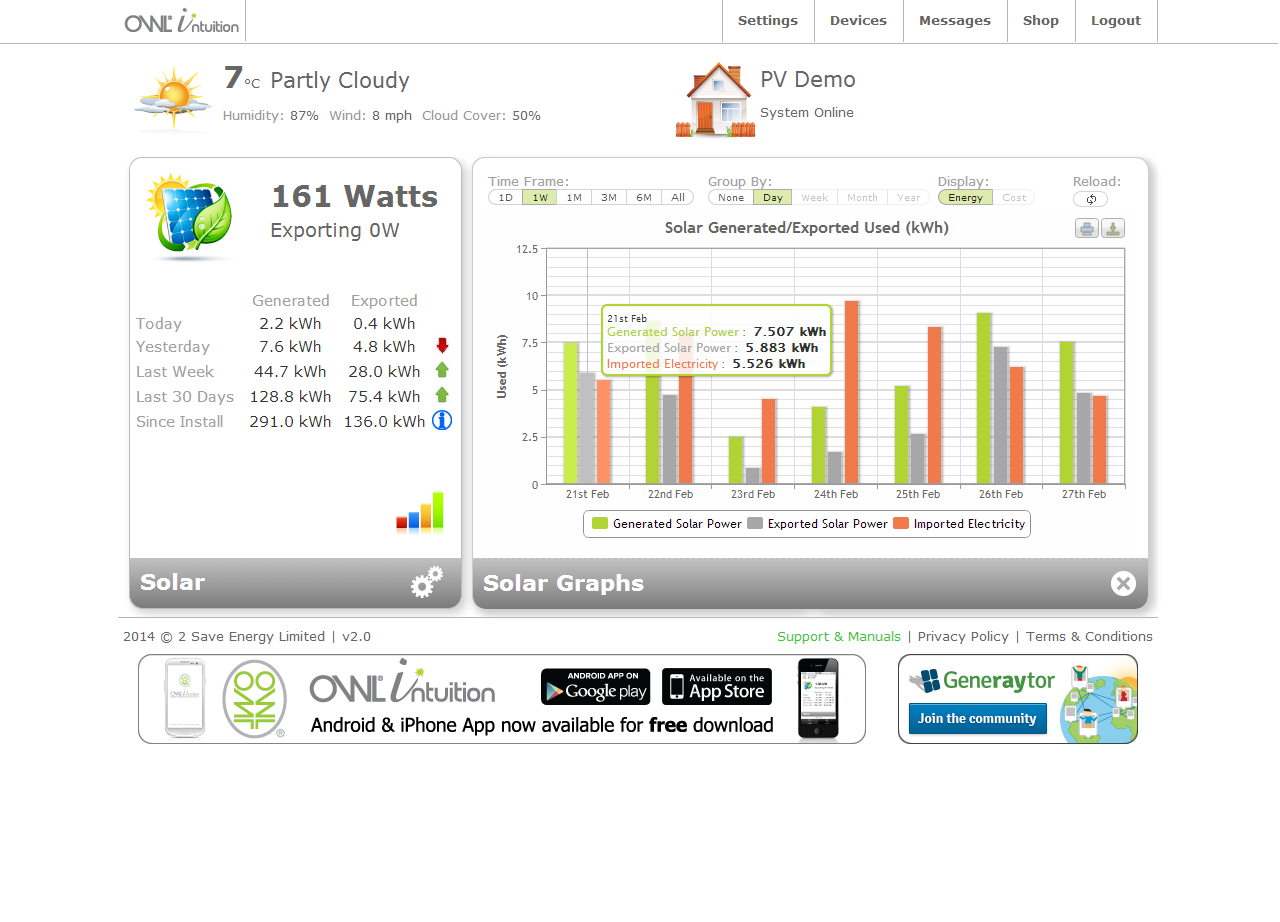

Intuition -PV screenshot 1Intuition -PV screenshot 2

Technical Specifications
Technical Specifications
Operating frequency:
Transmitter - 433MHz
Network OWL Gateway – 433MHz and 868MHz
Operating range up to 30m
12 second refresh rate (Electricity consumption data)
Transmitter battery life > 14 months
Sensor suitable to monitor cables rated up to 130A
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30

Standards Compliance
IEC 61010-1:2001(2nd Edition) / EN 61010-1:2001(2nd Edition)
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive

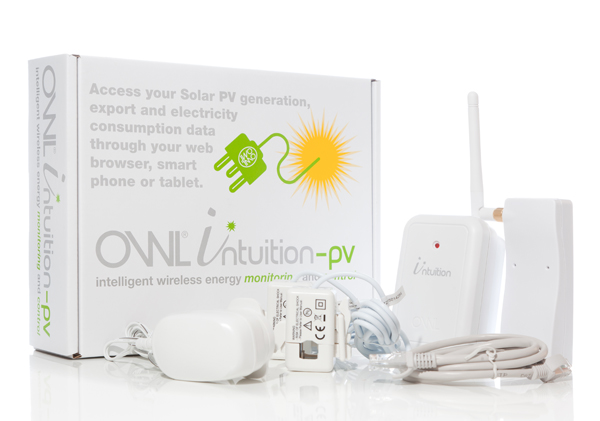

Includes
Network OWL Gateway with external antenna
Plug top power supply – 240V UK
Ethernet cable
3 channel Transmitter unit
2 x standard Sensor clamp (< 15mm cable, < 130A)
3 x AA alkaline battery
Installation /User Manual


Options
Large Sensor clamp (<24mm cable, < 300A)
Brochures and Manuals

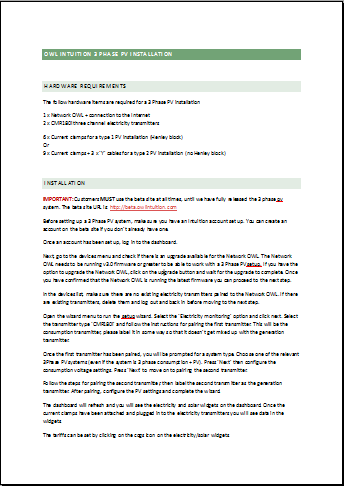

Intuition PV Brochure Intuition PV Manual  3-phase PV Install Guide
Brochure Installation Manual 3-Phase Installation Guide
