For "type 2" solar PV installations.

Product Features:

  • Allows monitoring of solar PV where the solar panels have been wired via the property's main consumer unit (a type 2 installation).
  • Inherently calculates whether or not the property is importing or exporting in the case of a type 2 installation.
  • Includes a standard sensor free of charge; allowing the default Intuition -pv to be upgraded to type 2 at minimal cost.

  • Simple set up instruction allows the unit to be retrofitted into existing installations easily - should a mistake be made in terms of type 1 or type 2 installations.

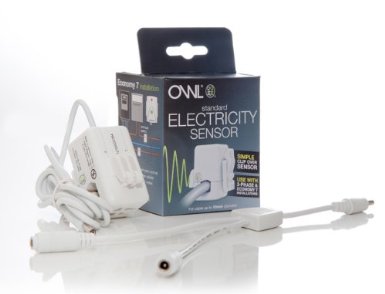

Y-cable pack


Technical Specifications
Technical Specifications
Clamp Dimensions: h 50mm; w 50mm; d 30mm
Cable Length: ~1.2m (Standard Sensor)
Cable Length: ~150mm (Y-cable)
Cable diameter(s): 4mm
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30
Standards Compliance
IEC 61010-1:2001(2nd Edition) / EN 61010-1:2001(2nd Edition)
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive
1x Standard Sensor
1x Y-cable
Brochures and Manuals
Y-cable Manual
Installation Manual
(See Page 7)
