Intuition-h

Single-zone Heating & Hot Water Control

Product Features:

  • Smart thermostat and tank stat allow web based control of a single heating zone and single hot water zone. (additional heating zones can be added - see Options)

  • Programmable timeclock and temperature control; which intelligently calculates times to turn on to maximise benefit.

  • Retrofits existing wired heating and hot water controls.

  • Access via mobile device or PC to smartphone app or web dashboard - wherever you have internet. Turn the heating on if you're coming home early; or turn it off if you've left it running.

Intuition -H
PLEASE NOTE: OWL recommends that all Intuition Smart Heating Controls are installed by a qualified heating engineer. Not all boilers can accept external thermostats. Please contact your boiler manufacturer to find out if your boiler is able to accept an external control.

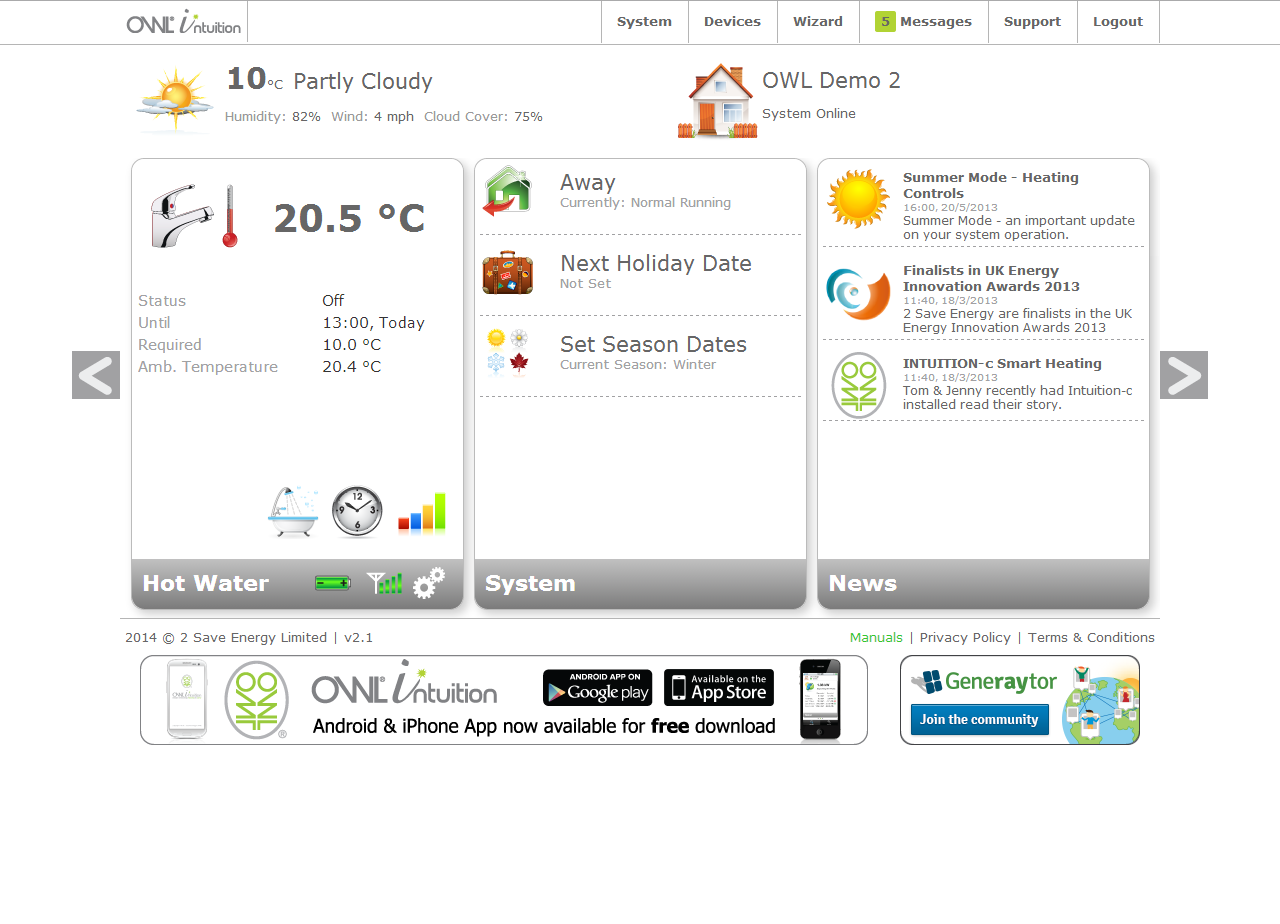

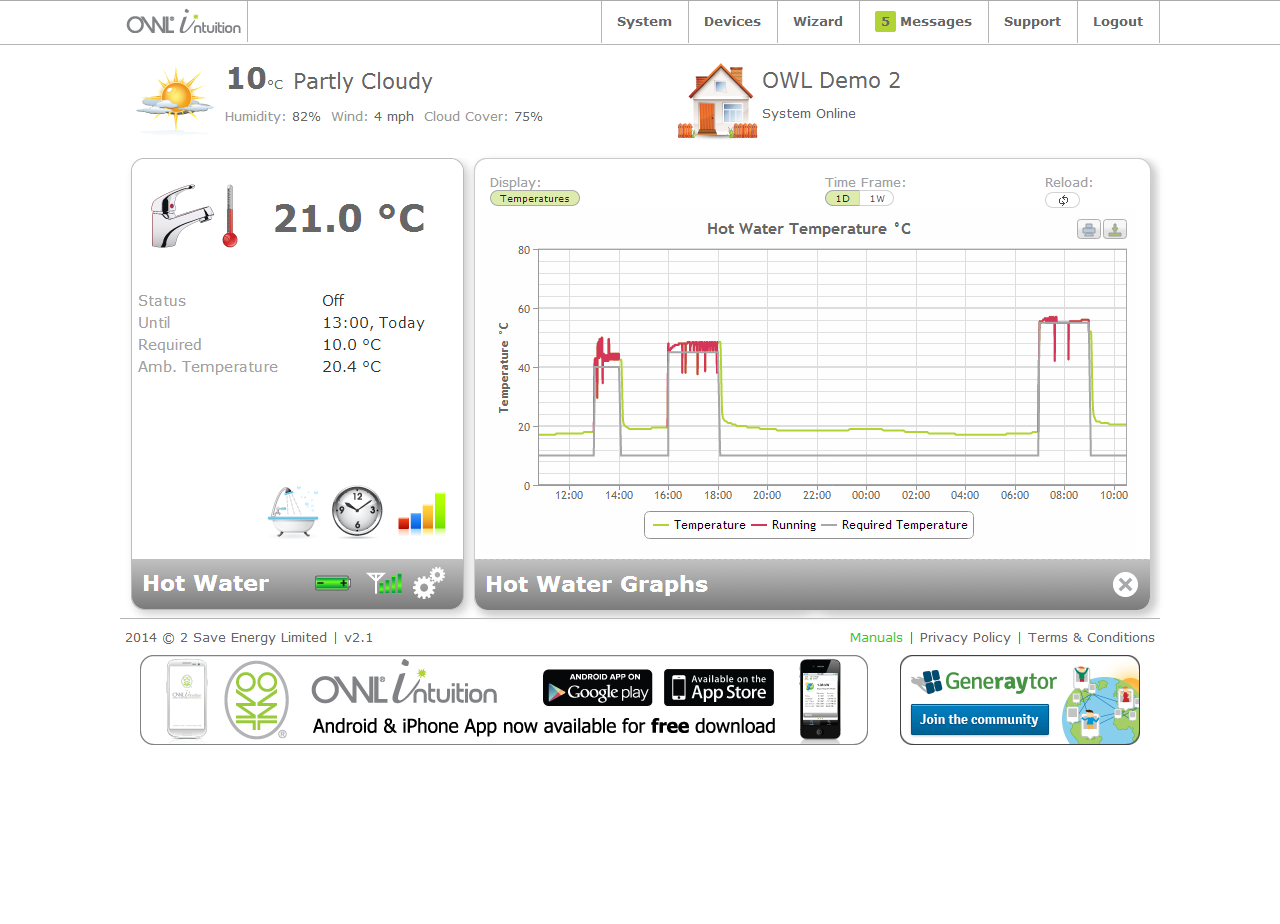

OWL Intuition-h Dashboard Screenshots

Click for larger images.

Intuition -H screenshot 1Intuition -H screenshot 2

Technical Specifications
Technical Specifications:
Network OWL – 868MHz & 433MHz
Heating Controls – 868MHz
Operating range up to 50m (In free space)
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30

Standards Compliance
IEC 60730-1:2001 / BS EN 60730-1:2001
BS EN 55014-1:2006+A1:2009
BS EN 55014-2:1997
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive


Includes
Network OWL Gateway,
Tank Sensor [TBT-E3H] (Battery powered, with Comfort (+), Standby & More H/W buttons),
Room Sensor [RBT-3C] (Battery powered, with Comfort (+), Standby & Away buttons),
back plate x 2,
safety wiring cover x 2,
4 x AAA alkaline battery,
Installation Instructions.

Brochures and Manuals

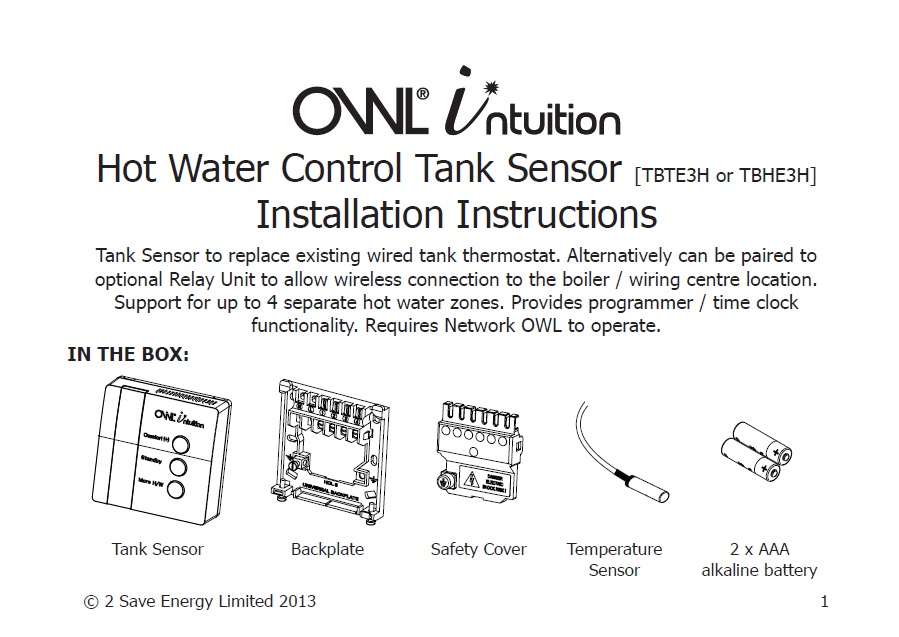

Smart Heating Brochure Tank Sensor Manual  Room Sensor Manual
Brochure Tank Sensor
Installation Manual
Room Sensor
Installation Manual
Heating Control Wiring Diagrams
Wiring Diagrams
