Product Features:

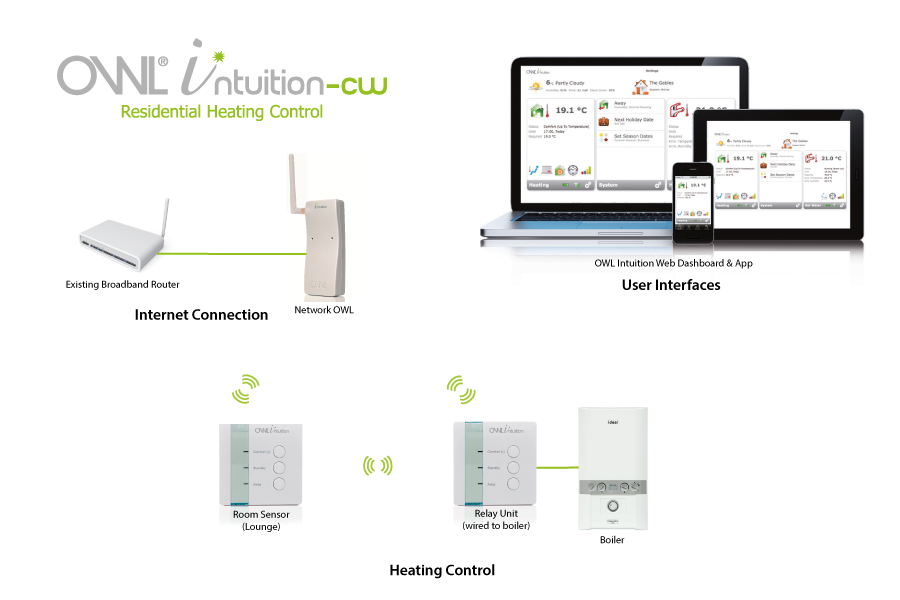

Smart thermostat allows web based control of a single heating zone (additional zones can be added - see Options).
Programmable timeclock and temperature control; which intelligently calculates when to turn on to maximise benefit.
Replaces existing wired heating controls with flexible wireless modules to fit anywhere in the home.
Access via mobile device or PC to smartphone app or web dashboard - wherever you have internet. Turn the heating on if you're coming home early; or turn it off if you've left it running.

PLEASE NOTE: OWL recommends that all Intuition Smart Heating Controls are installed by a qualified heating engineer. Not all boilers can accept external thermostats. Please contact your boiler manufacturer to find out if your boiler is able to accept an external control.

OWL Intuition-cw Dashboard Screenshots

Click for larger images.

Technical Specifications

Technical Specifications:

Network OWL – 868MHz & 433MHz

Heating Controls – 868MHz
Operating range up to 50m (In free space)
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30

Standards Compliance
IEC 60730-1:2001 / BS EN 60730-1:2001
BS EN 55014-1:2006+A1:2009
BS EN 55014-2:1997
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive

Includes
Network OWL Gateway,
Room Sensor [RBT-3C] (Battery powered, with Comfort (+), Standby & Away buttons),
Relay Unit [RMT-6C] (Mains powered, with Comfort (+), Standby & Away buttons),
back plate x 2,
safety wiring cover x 2,
4 x AAA alkaline battery,
Installation Instructions.

Brochures and Manuals


Room Sensor Installation Manual	Relay Unit Installation Manual

Wiring Diagrams
