Intuition-e

Single-phase Consumption Monitoring

Product Features:

  • Allows monitoring of single-phase electricity usage across a property.

  • Intuition online dashboard gives you access wherever you go, as long as you have internet access. Android and i-Phone apps can give you access on-the-go.

  • Shows live readings to 12 second intervals, and a historical account of your usage, also telling you when you've improved your usage habits.

  • User configurable tariff settings allow the unit to calculate what you've spent over the course of a day, week, and month.
Intuition -E


The graphical function shows both current peak and historical usages, allowing you to identify when you've been using the most energy and why, so helping you take steps to reduce consumption.

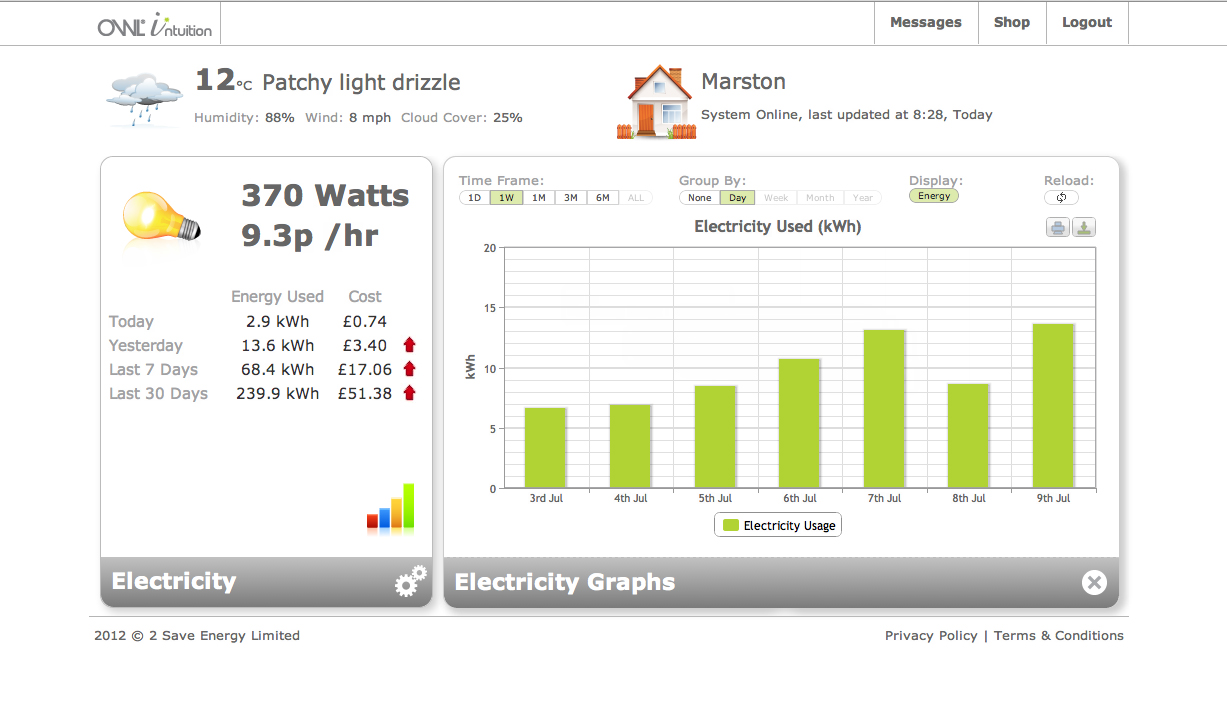

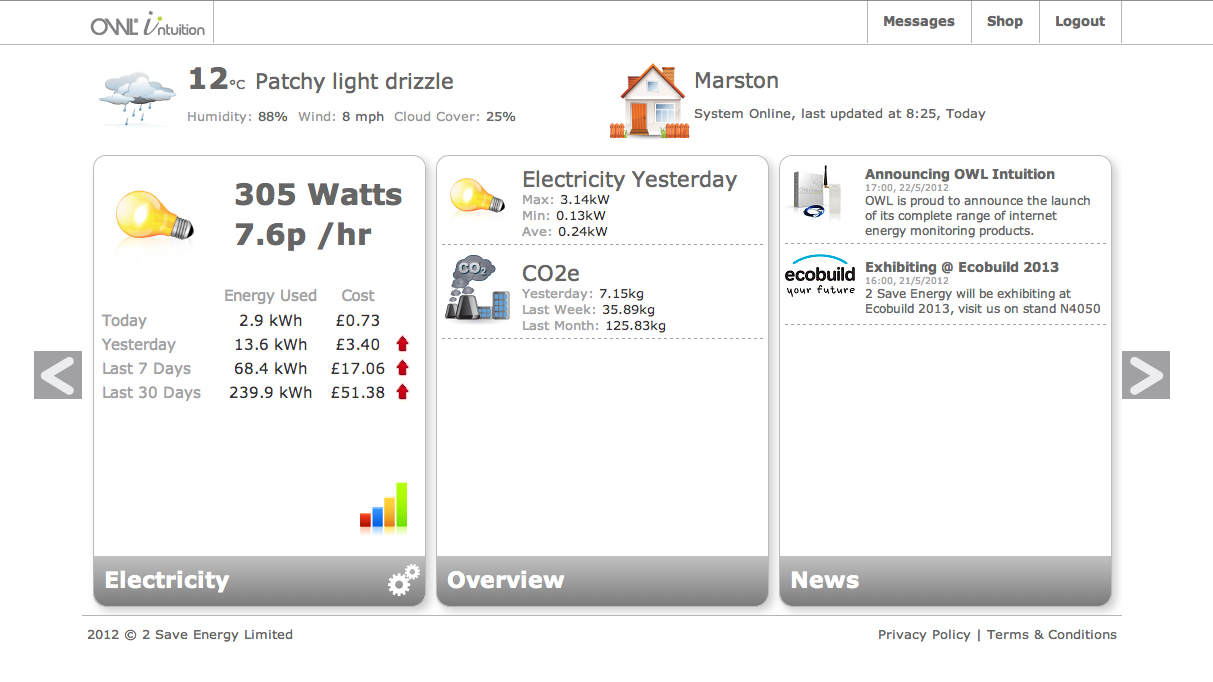

OWL Intuition-e Dashboard Screenshots

Click for larger images.

Intuition -E screenshot 1Intuition -E screenshot 2

Technical Specifications
Technical Specifications
Operating frequency:
Transmitter - 433MHz
Network OWL Gateway – 433MHz and 868MHz
Operating range up to 30m
12 second refresh rate (Electricity consumption data)
Transmitter battery life > 14 months
Sensor suitable to monitor cables rated up to 71A
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30

Standards Compliance
IEC 61010-1:2001(2nd Edition) / EN 61010-1:2001(2nd Edition)
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive

Includes
Network OWL Gateway with external antenna
Plug top power supply – 240V UK
Ethernet cable
Single channel Transmitter unit
1 x standard Sensor clamp (< 10mm cable, < 71A)
3 x AA alkaline battery
Installation /User Manual

Options
Large Sensor clamp (> 10mm cable, < 200A)
Brochures and Manuals
Intuition -PV Brochure Intuition -PV Manual
Brochure Installation Manual
